SCs70 Pro sub

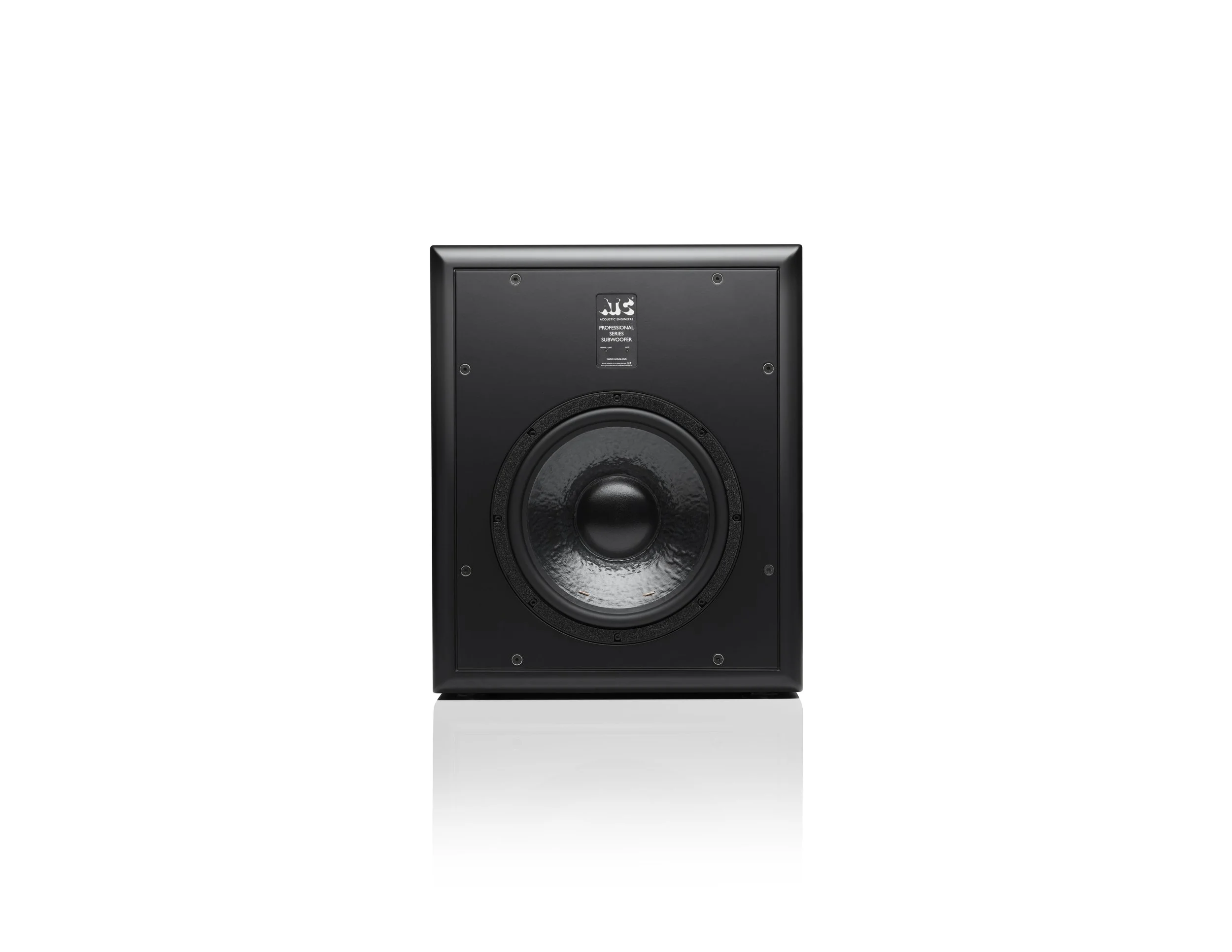

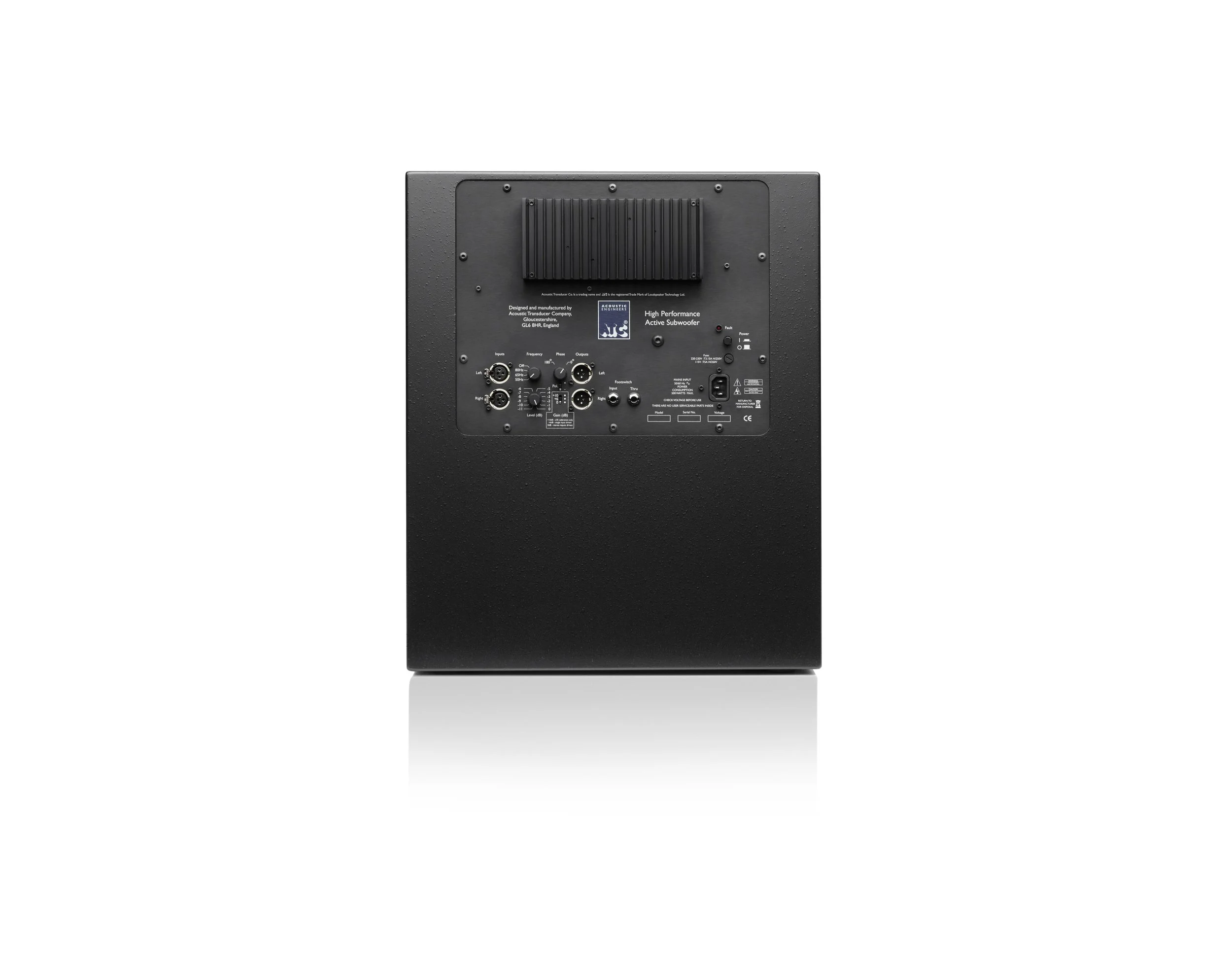

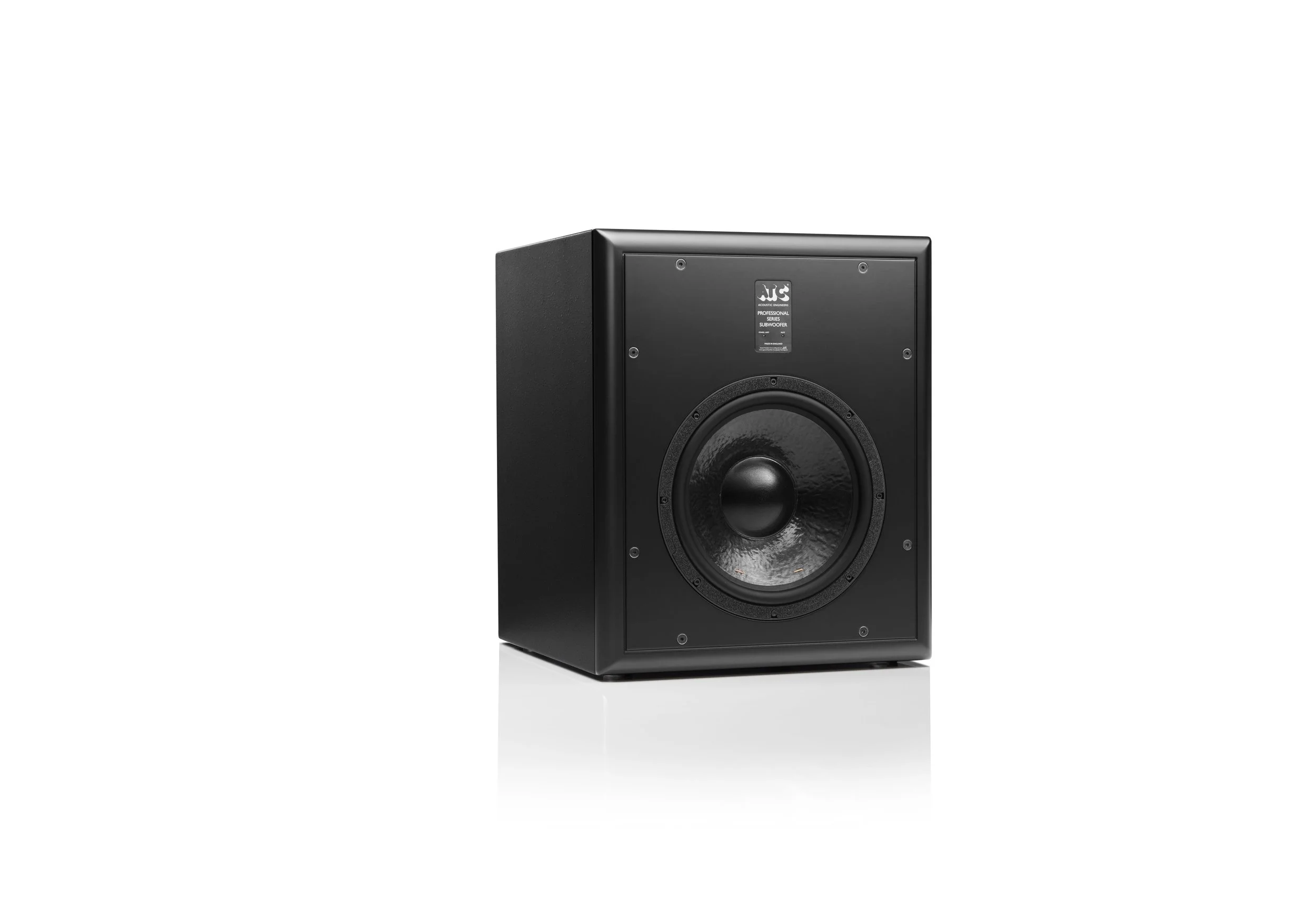

The SCS70 Pro is designed for use 'freestanding' and features a radius baffle and rear mounted amplifier with a 12" bass driver is an all-new design and is loaded in a 70 litre sealed cabinet.

SCS70iW Pro

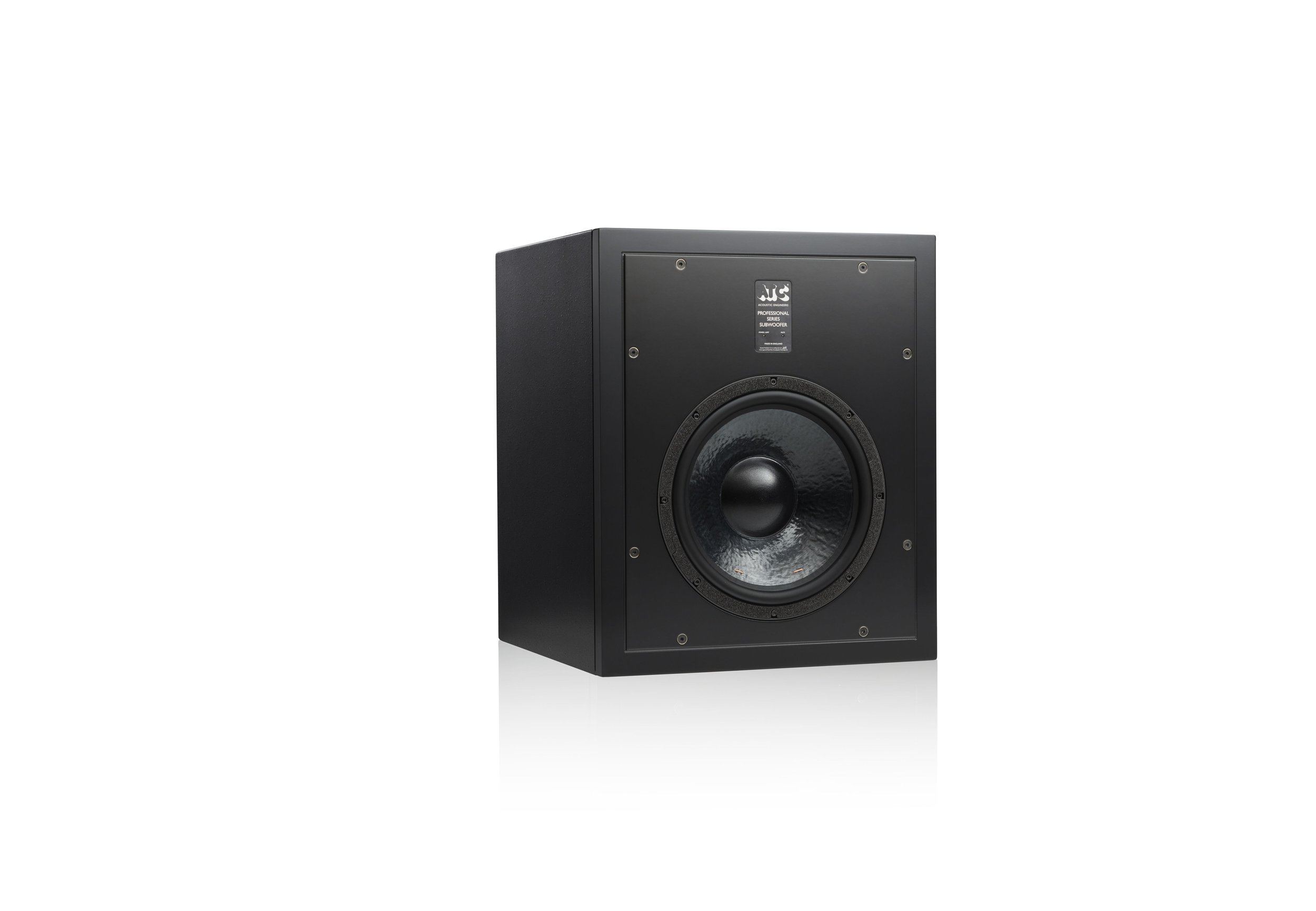

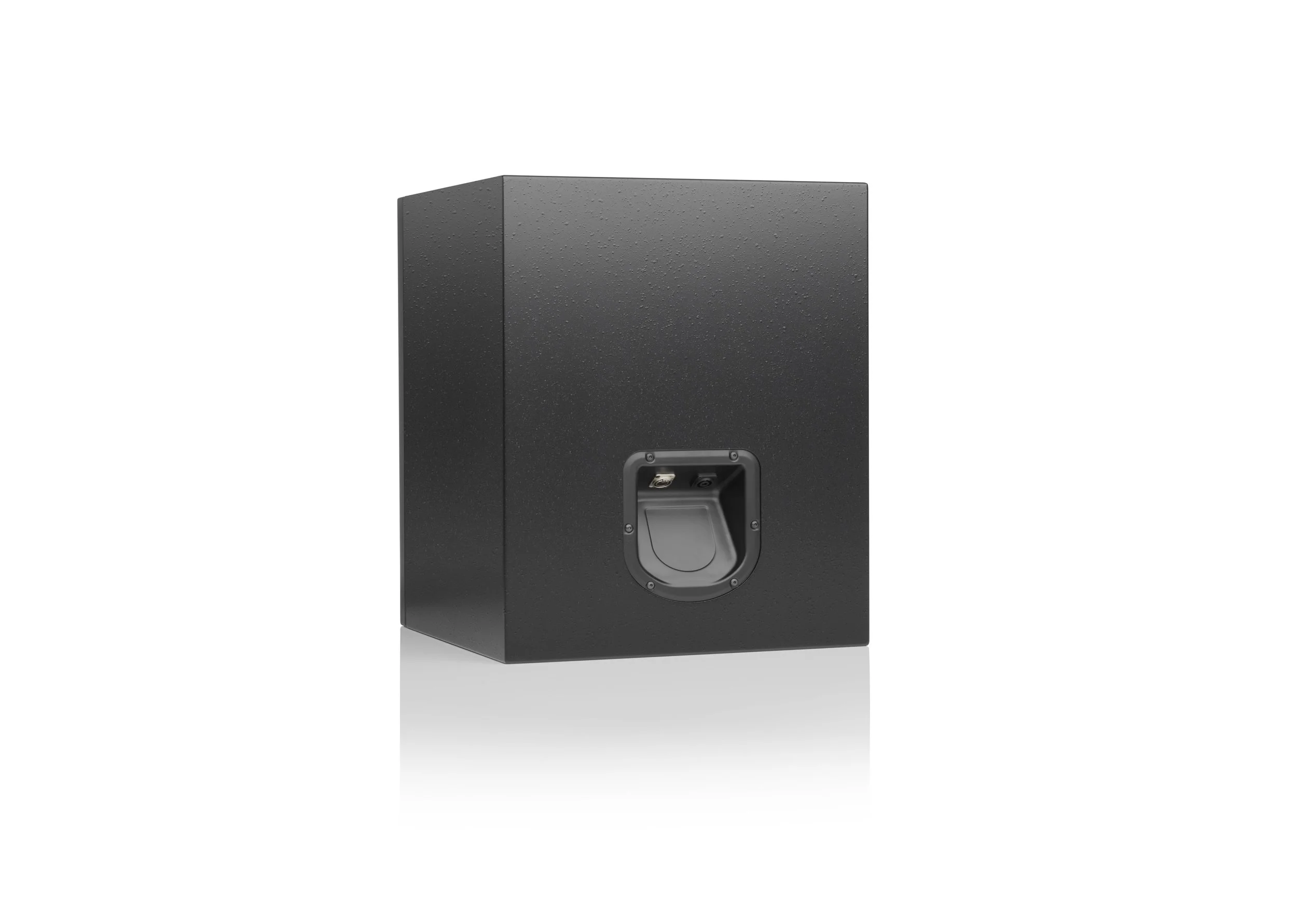

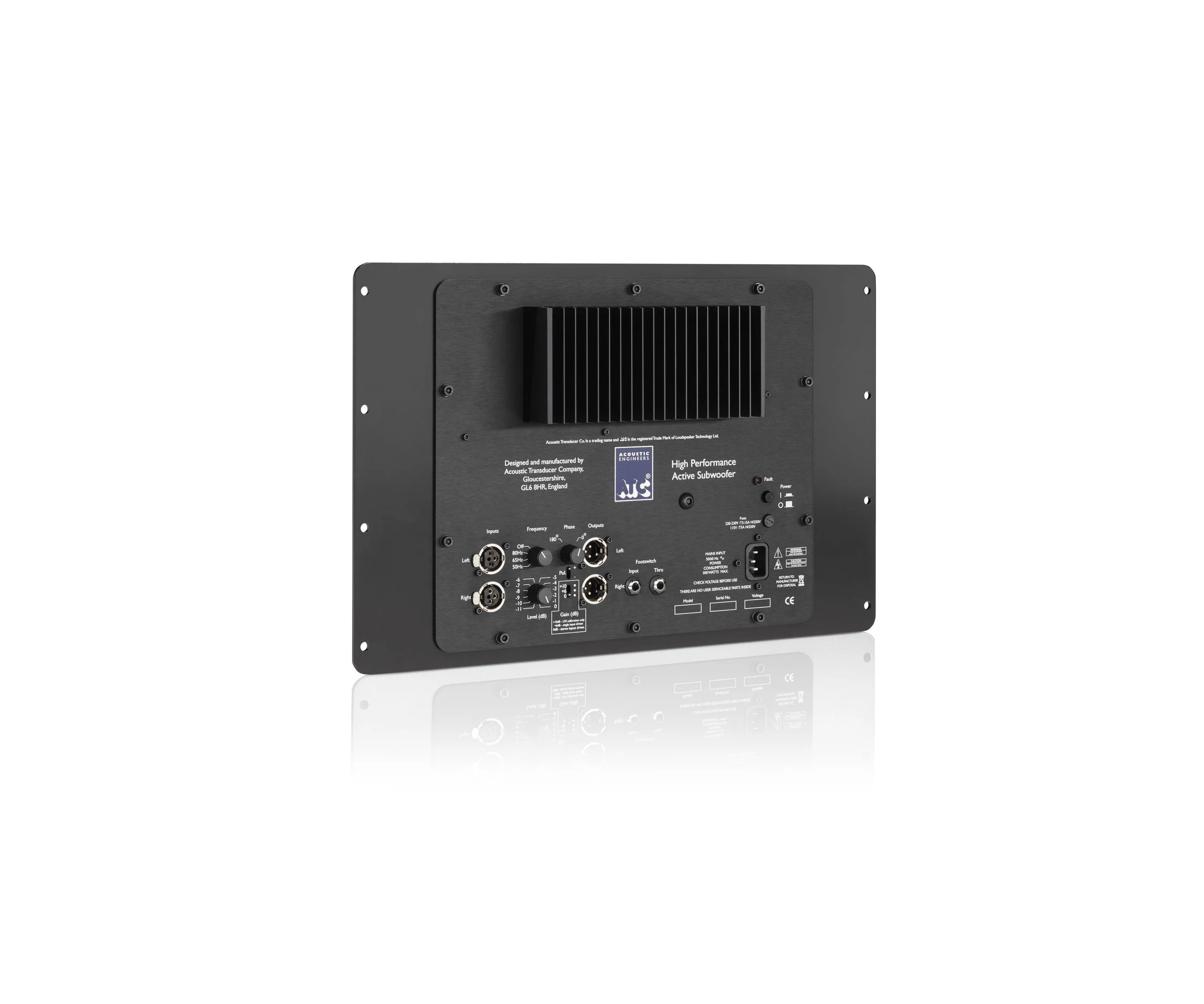

The SCS70iW Pro is optimised for flush/in-wall mounting and features a square edge baffle and is supplied with the 19"/7U R1-300 amp which can be mounted in a wall within the control room or in a 19" rack.

Drive Unit
Bass:1 x SS75-314SC 8Ω.
Low Frequency Cut-off: 22Hz (-6dB, half space, low pass filter set at 80Hz).
Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley)..
Max SPL: 110dB continuous, 116dB peak (IEC Weighted Pink Noise, measured at 1m, half space,low pass filter set at 80Hz).
Sensitivity: +4dBu ref 88dBC (single channel driven, Gain +6dB, Level 0dB, pink noise, low pass filter @ 80Hz).

Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled.
Output Power: 300W in to 8Ω.

Free Standing / In-Wall
Net Weight: 44kg / 32.5kg
Product Dimensions: 560 x 464 x 500mm (H x W x D) / 560 x 464 x 450mm (H x W x D)
