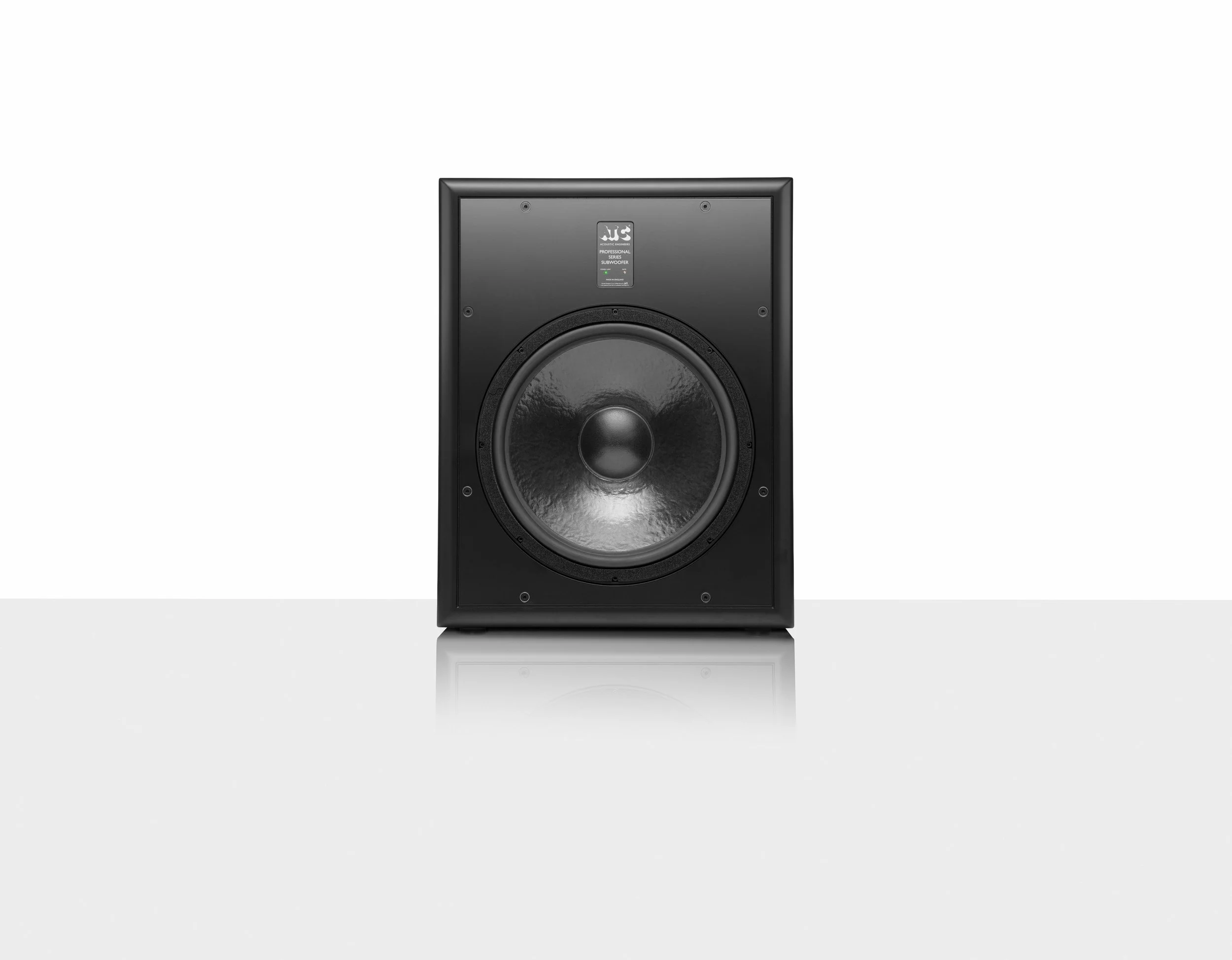

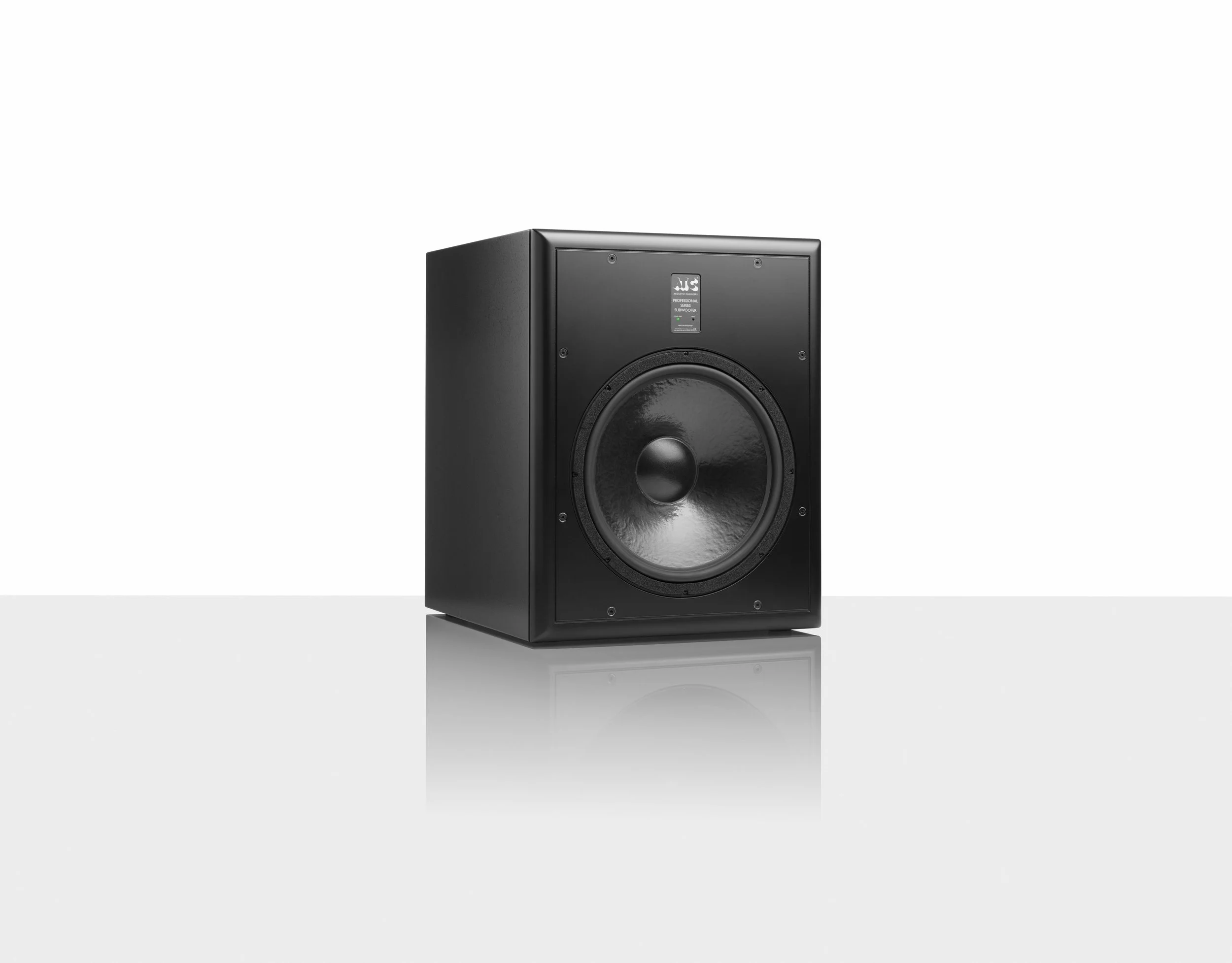

SCs120 Pro sub

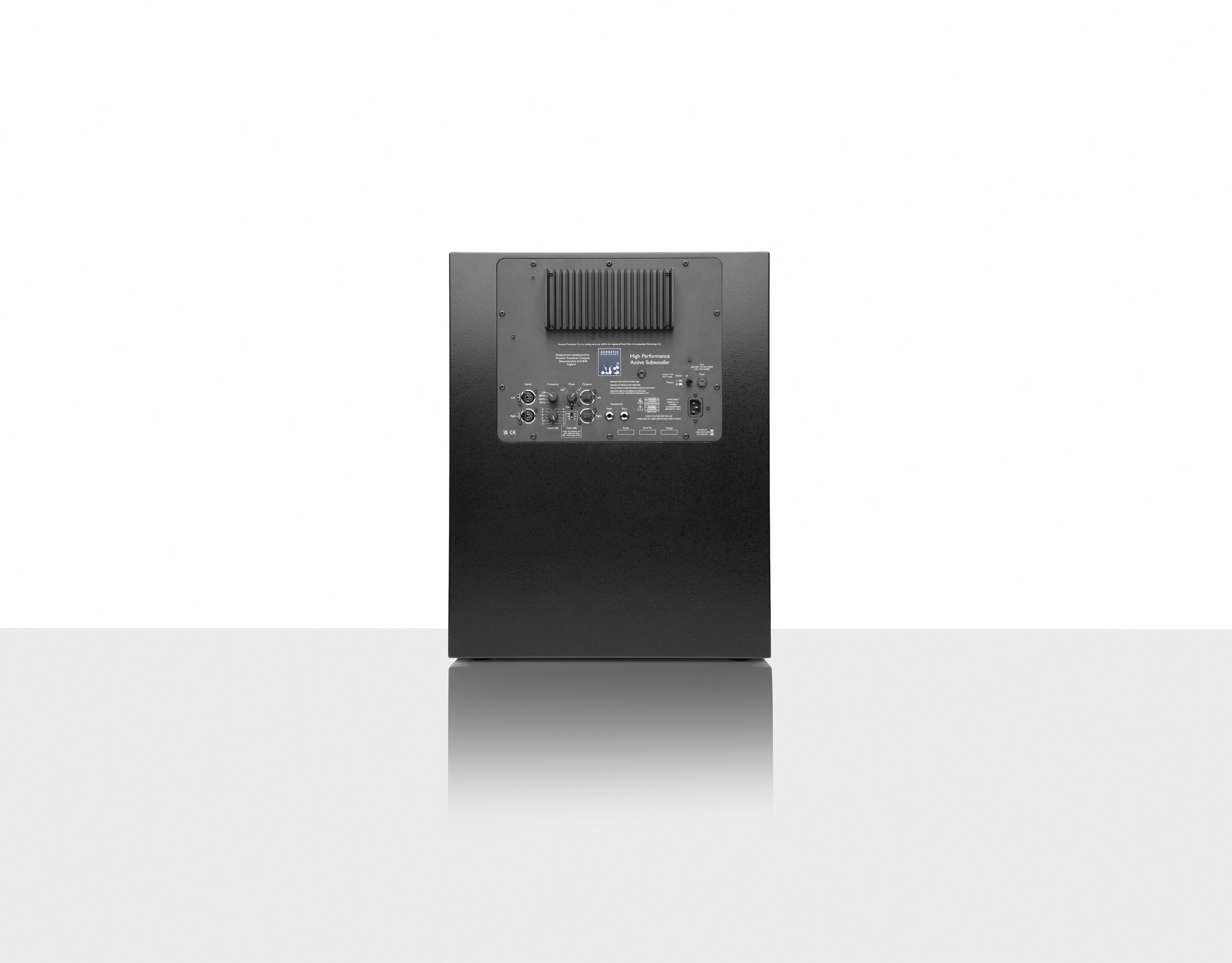

The SCS120 Pro is designed for use 'freestanding' and features a radius baffle and rear mounted amplifier with a 15" bass driver is an all-new design and is loaded in a 120 litre sealed cabinet. The larger driver and cabinet result in 3dB greater efficiency (headroom) and an extended bass response.

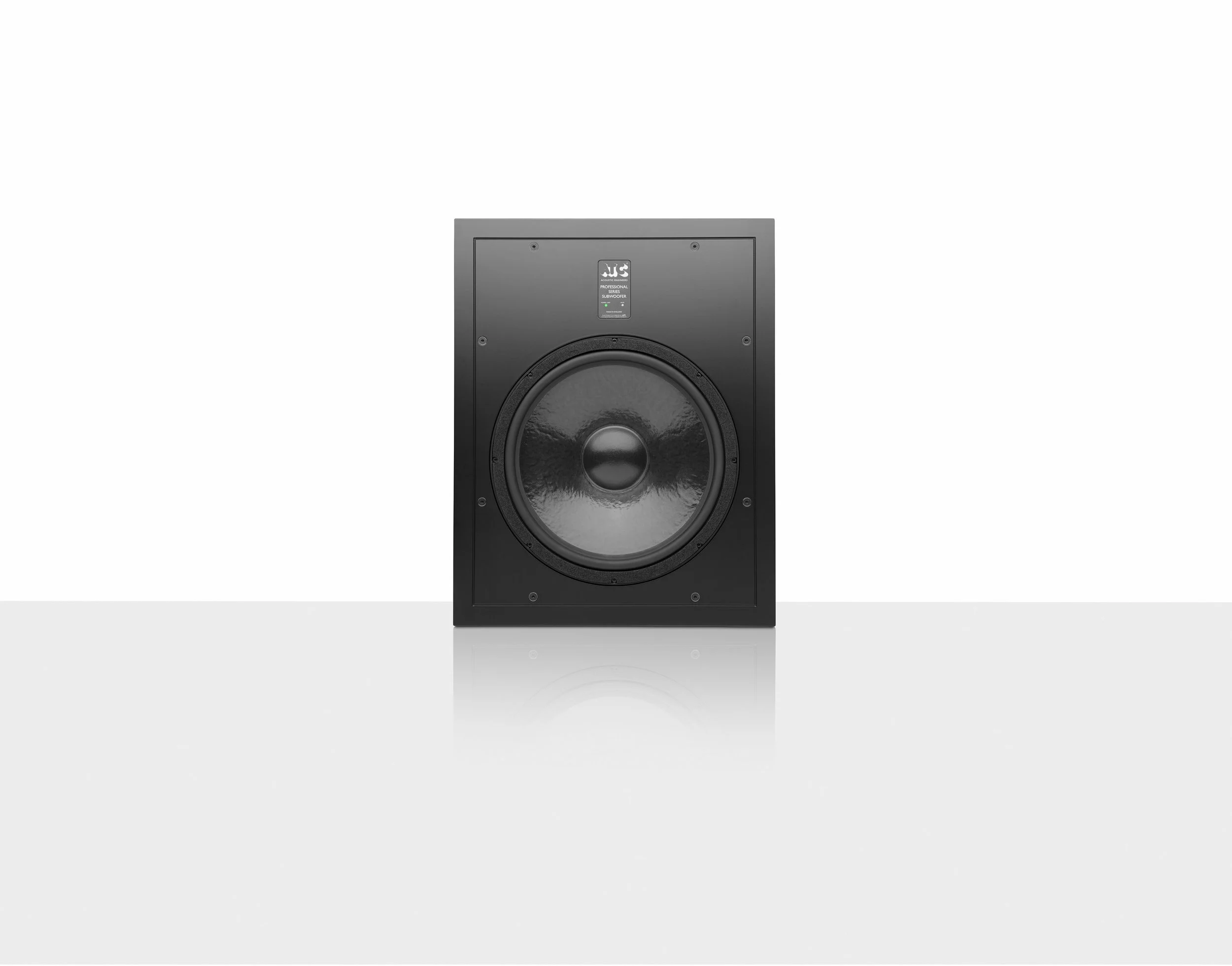

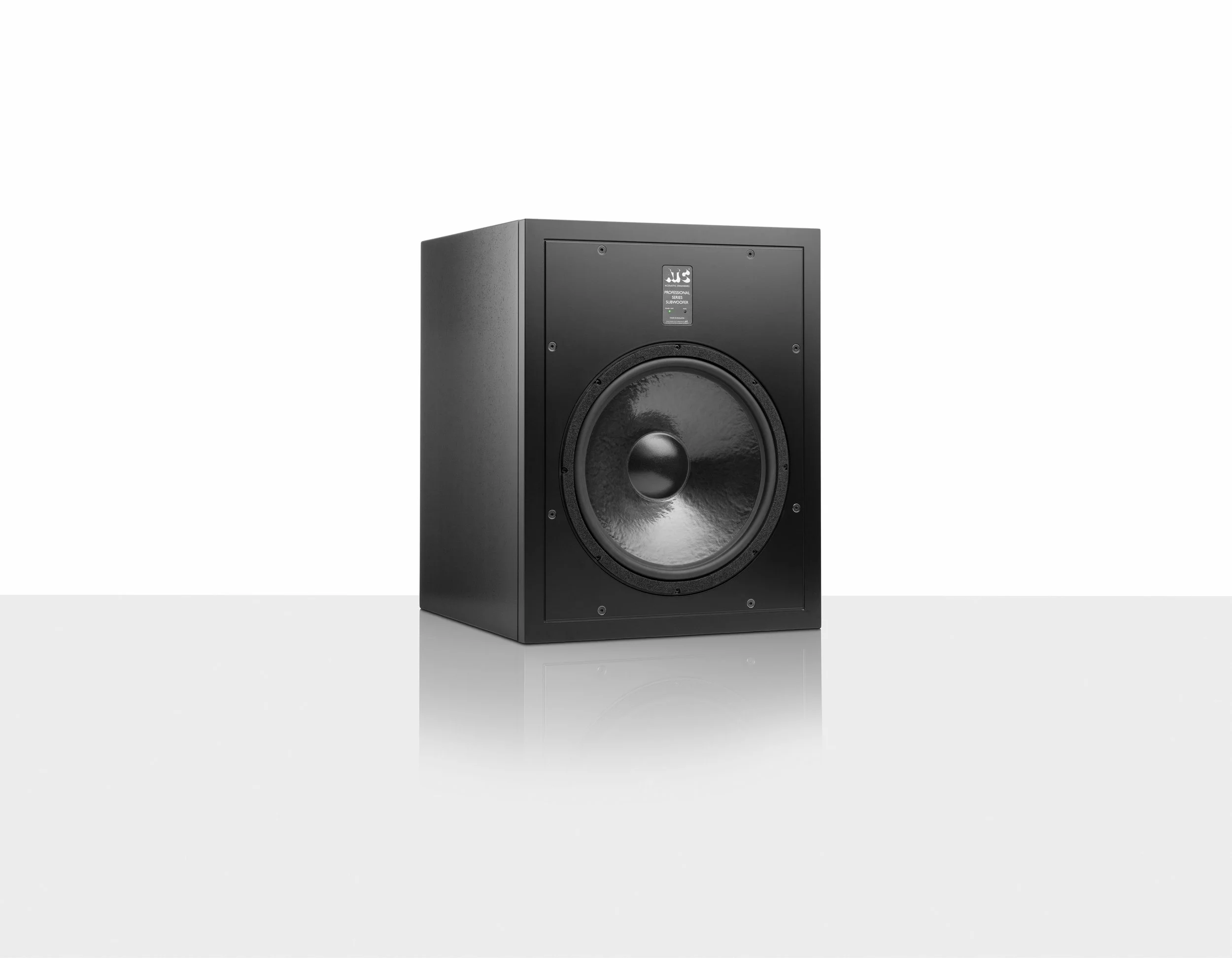

SCS120iW Pro

The SCS120iW Pro is optimised for flush/in-wall mounting and features a square edge baffle and is supplied with the 19"/7U R1-300 amp which can be mounted in a wall within the control room or in a 19" rack.

Drive Unit

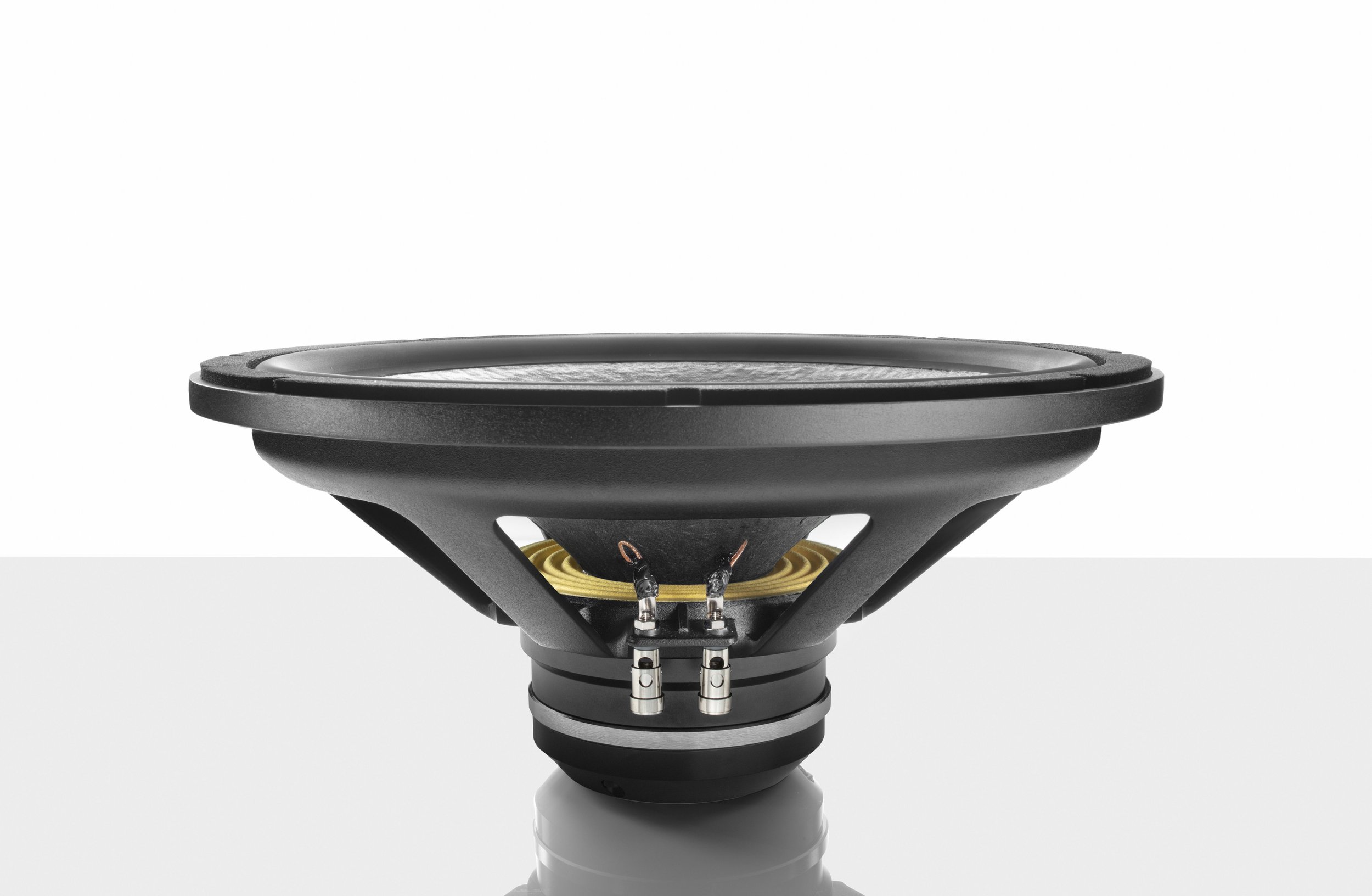

Bass:1 x ATC SS75-375SC 8Ω.
Low Frequency Cut-off: 20Hz (-6dB, half space, low pass filter set at 80Hz).
Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley)..
Max SPL: 113dB continuous, 119dB peak (IEC Weighted Pink Noise, measured at 1m, half space,low pass filter set at 80Hz).
Sensitivity: 85dBC, ref. -17dBu (single channel driven, Gain +6dB, Level 0dB, pink noise, low pass filter set at 80Hz).

Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled.
Output Power: 300W in to 8Ω.

Free Standing / In-Wall
Net Weight: 44.5kg / 35.3kg
Product Dimensions: 630 x 498 x 568mm (H x W x D) / 630 x 498 x 518mm (H x W x D)
