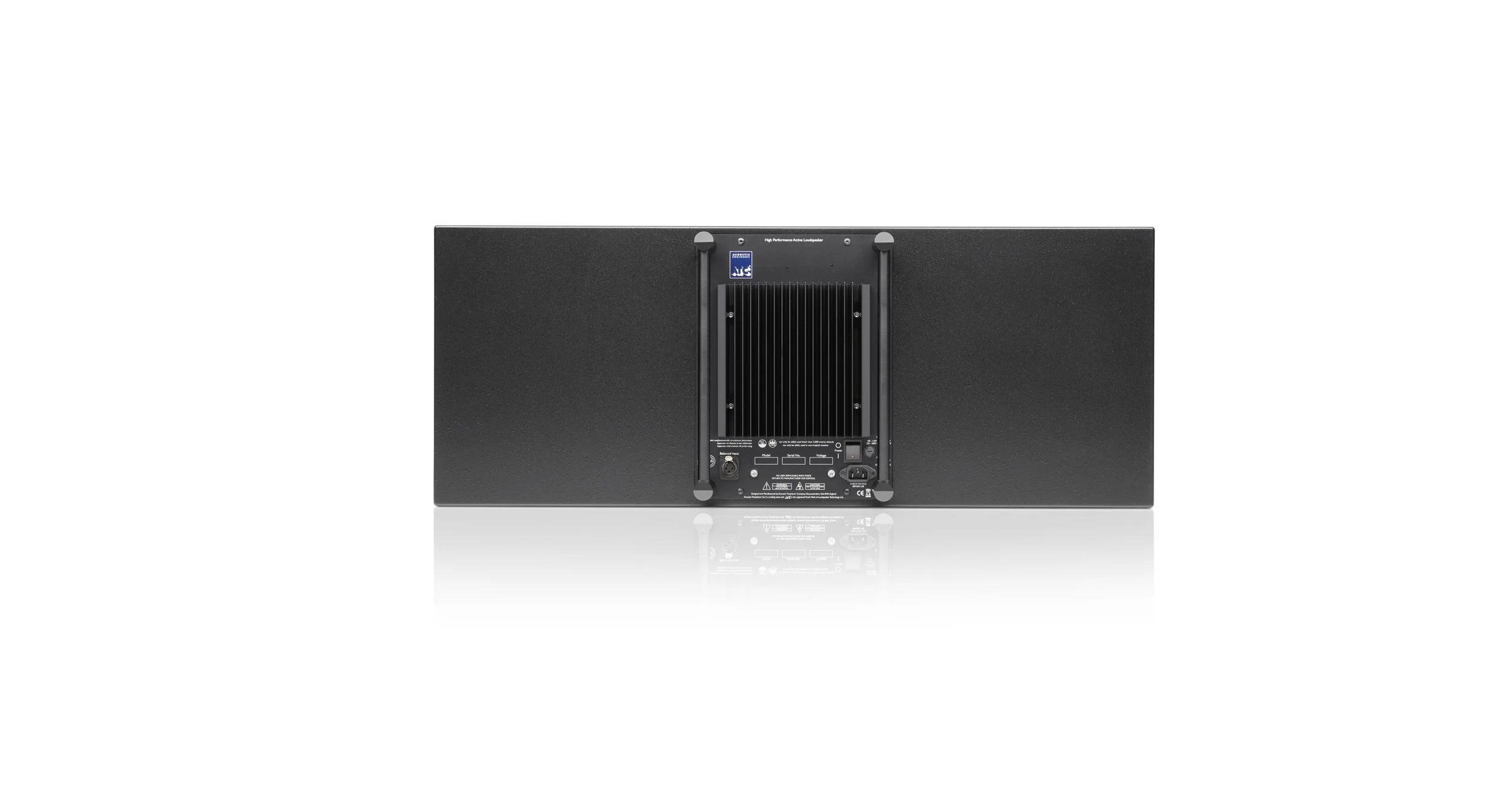

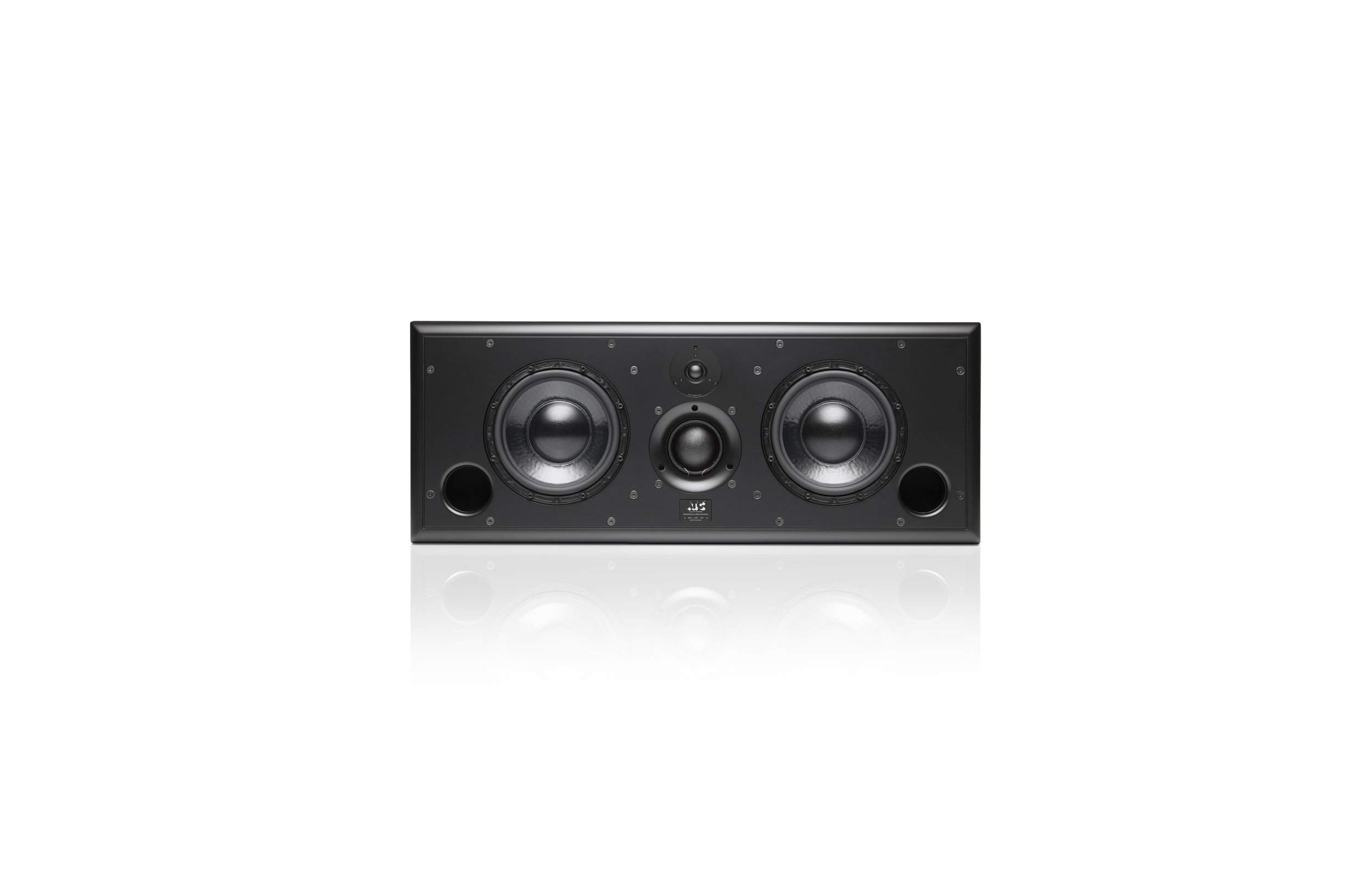

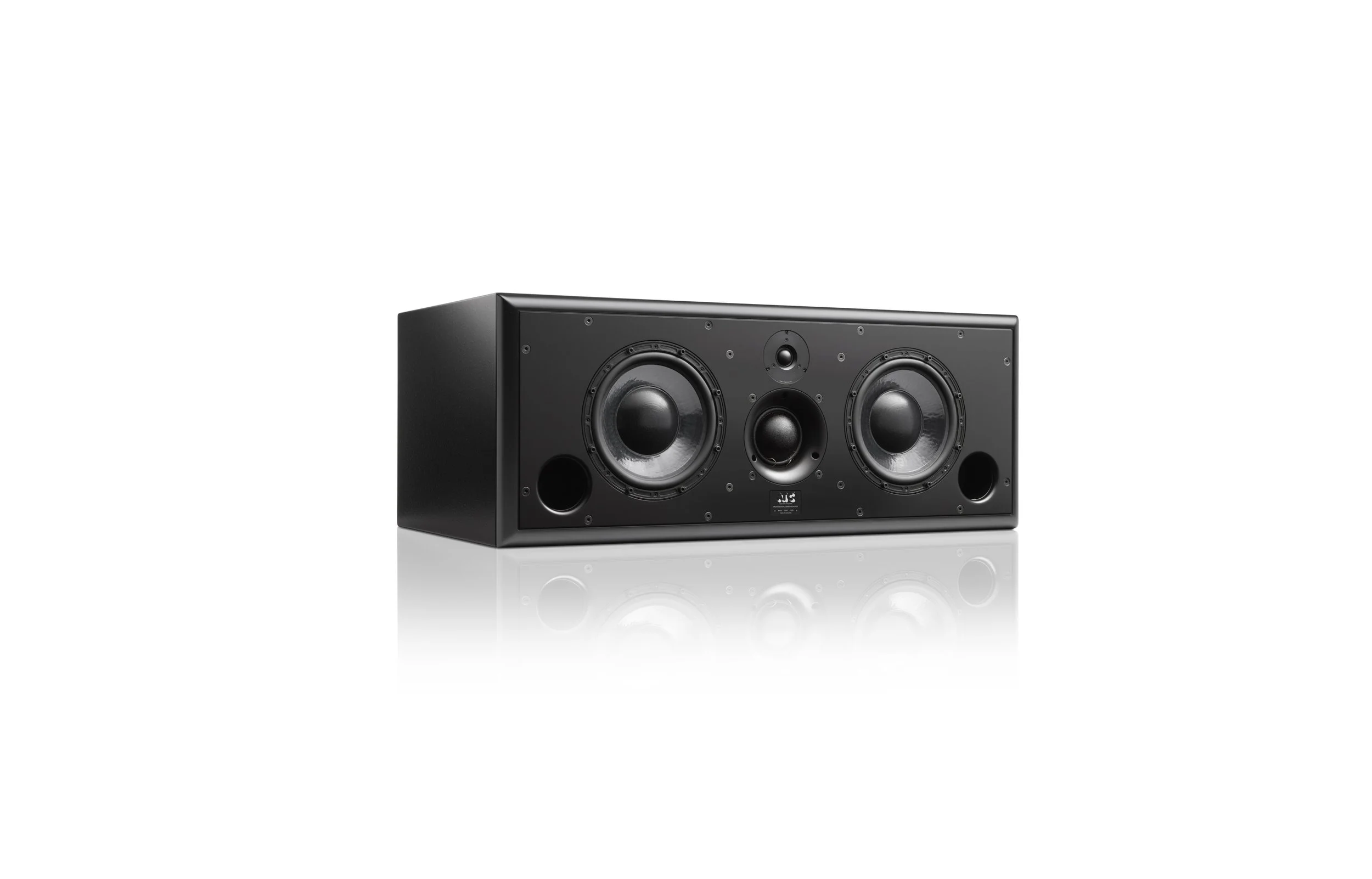

SCM105AC Pro

The SCM105AC has been designed specifically as a centre channel monitor, with reduced cabinet height, to ease fitment in crowded control rooms. It is based upon the SCM110A Pro mid-field monitor and can partner a range of ATC 3-way mid-field monitors in 5.1, 7.1 surround or immersive audio systems such as those used for Dolby Atmos.

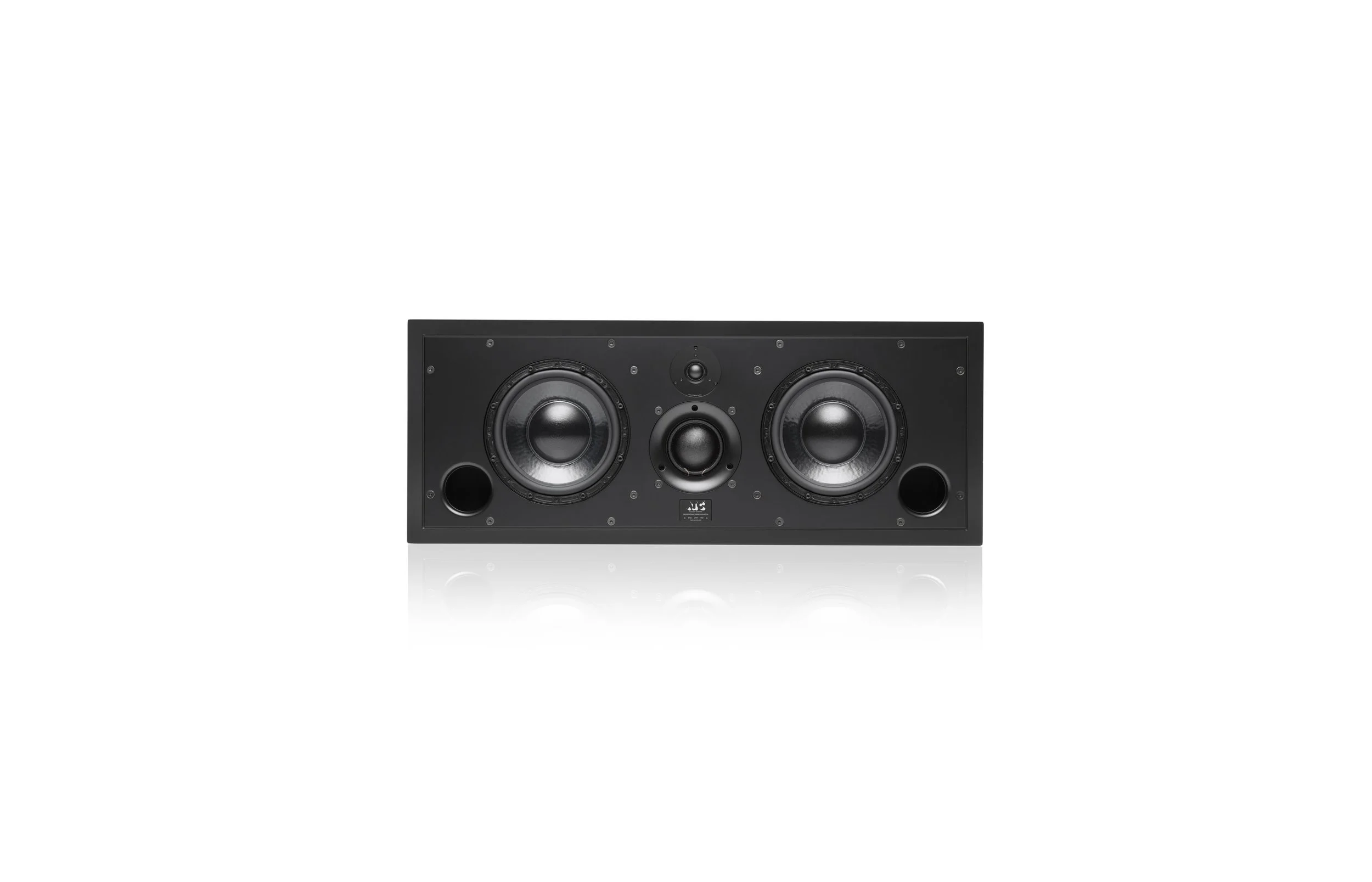

SCM105AiwC Pro

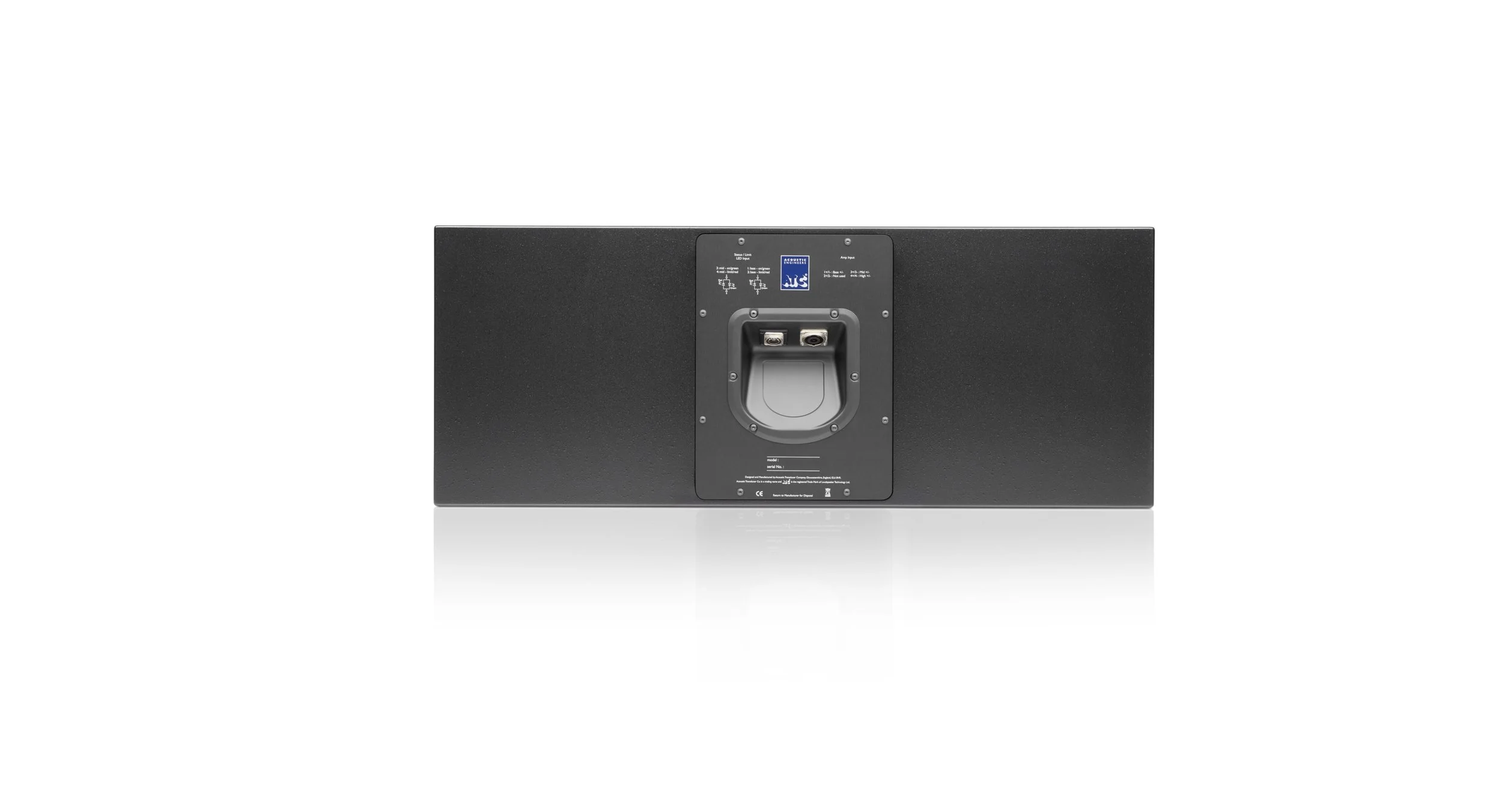

The SCM105AiWC has been designed specifically as an in-wall centre channel monitor with reduced cabinet height, to ease fitment in crowded control room front walls. Featuring square edge front baffle and rear mounted input panel for optimal flush in-wall mounting. Requires remote mounted 6U/19” ATC active 3-channel amplifier.

Drive Unit
Bass: 2 x SB75-234SL 16Ω.
Mid: 1 x SM75-150S 16Ω.
HF: 1 x SH25-76S 6Ω.
Low Frequency Cut-off: Cut-off: 30Hz (-6dB, anechoic).
High Frequency Cut-off: 25kHz (-6dB).
Amplitude Linearity: 50Hz – 17kHz (+/- 2dB).
Crossover Points: 380Hz & 3.5kHz. (4th Order Linkwitz-Riley).
Max SPL: 115dB continuous, 121dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic).
Sensitivity: 85dBC ref. -20dBu (per single unit, 1m, pink noise, bass boost 0dB, sensitivity 2.2dBu/1V).

Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled.
Output Power: Bass 200W (8Ω), Mid 100W (16Ω), HF 50W (6Ω).

Free Standing / In-Wall
Net Weight: 66.5kg / 54.7kg
Product Dimensions: 370 x 950 x 605mm (H x W x D) / 370 x 950 x 500mm (H x W x D)
